Model Features
- AMCA Air, Sound, and FEI Licensed
- Statically and dynamically balanced propeller
- Drives sized for a minimum of 150% of drive horsepower
- Galvanized steel one-piece fan panel and orifice
- All-welded galvanized motor and drive support assembly
- Die-formed galvanized steel blades
- Heavy gauge welded hub keyed to fan shaft
- Air handling bearings L50=200K hours avg. life
Model Overview
The CrewCooler™ aisle air circulator fan is designed to move large volumes of air at low fan speeds and noise levels. This high-capacity belt-driven propeller fan features easy mounting for economical installation, and can be suspended from the ceiling to direct large volumes of downward airflow toward workers in the aisles. Applications include distribution centers, warehouses, manufacturing, poultry houses, and greenhouses.
Warranty: 2-year fan, 1-year motor
| Size | CFM Range | Max SP |
| 24 | 2,256–9,774 | 5/8" |
| 48 | 6,659–28,209 | 3/8" |
Air Throw Chart

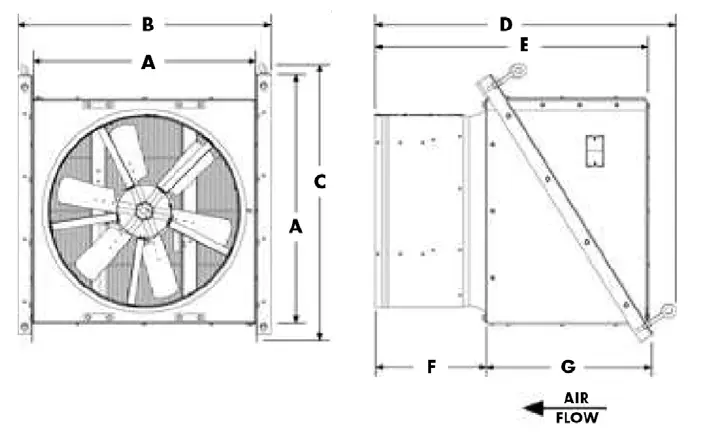

Dimensional data is displayed in inches.
| Size | A | B | C | D | E | F | G |
| 24 | 30 | 34 | 37 | 39 | 37 | 15 | 22 |
| 48 | 54 | 58 | 64 | 48 | 45 | 26 | 19 |
- Distribution Centers
- Warehouses
- Manufacturing
- Poultry Houses
- Greenhouses
