TRe/TReN Total Recovery Premium

Energy Recovery Ventilators

Energy Recovery Ventilators
TR TRC TRC-RT TRCeN/TRCe TRLPe TRe/TReN
TRe Model

Model Features

  • More efficient EC motor
  • Speed controllable high-speed boost mode
  • Low voltage percentage timer and point of use controls
  • Individual airstream balancing capability
  • Integral test ports
  • Suitable for residential and light commercial applications
  • Can be mounted in any orientation
  • Next-generation TReN models are now available
  • Can be paired with the advanced ERVC+ controller for enhanced ERV control, improving operation and flexibility
  • California FID compliance can be achieved using TReN models with the ERVC+ controller
  • MERV 13 filters are available
  • HVI Certified
  • cETLus Listed
  • Ecowatt®
  • This product meets the requirements of Buy American (2009) and Build America, Buy America (BABA), as part of IIJA (2022). Download letter here.

HVI cETLus   Ecowatt   BABA-ACT

Model Overview

Total Recovery Premium, TRe, is the latest edition to S&P USA's line of Energy Recovery Ventilators. TRe can be used in any orientation and features an EC motor for great energy efficiency. Utilize TRe for any residential or light commercial project by individually balancing each airstream to account for variations of duct run lengths.

10-year core and 5-year unit warranty

TRe90 Airflow Performance Data

Airflow
(CFM)		 External
Static Pressure
(inches w.g.)		 Temperature
EFF%		 Total
EFF%
Winter		 Total
EFF%
Summer
Max. Speed
138 0.1 62 58 36
131 0.2 64 59 38
125 0.3 65 61 49
119 0.4 66 62 41
112 0.5 67 63 43
106 0.6 68 65 45
97 0.7 70 67 48
91 0.8 71 68 49
83 0.9 73 70 51
74 1.0 75 71 54
56 1.2 78 75 59
35 1.4 82 80 65
Min. Speed
28 0.1 83 81 67
13 0.2 86 85 71

TRe200 Airflow Performance Data

Airflow
(CFM)		 External
Static Pressure
(inches w.g.)		 Temperature
EFF%		 Total
EFF%
Winter		 Total
EFF%
Summer
Max. Speed
233 0.1 58 49 26
225 0.2 59 50 27
216 0.3 60 51 28
210 0.4 61 52 30
201 0.5 62 53 32
193 0.6 63 54 34
184 0.7 64 56 36
176 0.8 66 57 38
163 0.9 67 59 40
150 1.0 69 61 42
117 1.2 73 67 49
86 1.4 77 72 56
48 1.6 82 78 63
Min. Speed
18 0.1 86 84 71

TRe300 Airflow Performance Data

Airflow
(CFM)		 External
Static Pressure
(inches w.g.)		 Temperature
EFF%		 Total
EFF%
Winter		 Total
EFF%
Summer
Max. Speed
288 0.1 71 63 45
280 0.2 71 64 46
269 0.3 72 65 47
261 0.4 72 65 48
252 0.5 73 66 49
244 0.6 73 67 50
233 0.7 74 68 51
222 0.8 75 69 52
212 0.9 75 69 53
199 1.0 76 70 54
170 1.2 78 73 57
136 1.4 80 75 60
93 1.6 83 79 64
36 1.8 86 83 69
Min. Speed
67 0.1 85 81 67
36 0.2 86 83 69

TReN90/TReN90H Airflow Performance Data

Airflow (CFM) External Static Pressure (Inches Water Column) Unit Power Consumption (Watts) Sensible EFF% Total EFF% Winter/Summer
Max. Speed
138 0.1 137 62 54/36
131 0.2 136 64 55/38
125 0.3 134 65 57/40
119 0.4 133 66 58/41
112 0.5 133 67 60/43
106 0.6 130 68 61/45
97 0.7 128 70 63/48
91 0.8 124 71 65/49
83 0.9 121 73 67/52
74 1 116 75 69/54
56 1.2 98 78 73/59
35 1.4 85 82 78/65
Min. Speed
28 0.1 13 83 79/67
13 0.2 12 86 83/71

TReN200/TReN200H Airflow Performance Data

Airflow (CFM) External Static Pressure (Inches Water Column) Unit Power Consumption (Watts) Sensible EFF% Total EFF% Winter/Summer
Max. Speed
242 0.1 191 57 47/28
233 0.2 190 58 48/29
227 0.3 189 59 49/31
218 0.4 189 60 50/32
210 0.5 191 61 52/34
203 0.6 192 62 53/35
195 0.7 189 63 54/37
186 0.8 191 64 56/38
180 0.9 189 65 57/40
172 1 190 66 58/42
155 1.2 191 68 61/45
124 1.6 190 72 66/51
92 2 190 77 71/57
Min. Speed
93 0.1 38 76 71/57
75 0.2 36 79 74/60
51 0.3 32 82 78/65

Dimensions for TRe90

Dimensional drawing for the TRE90 models.

Dimensions for TRe200

Dimensional drawing for the TRLPe100 models.

Dimensions for TRe300

Dimensional drawing for the TRLPe100C models.

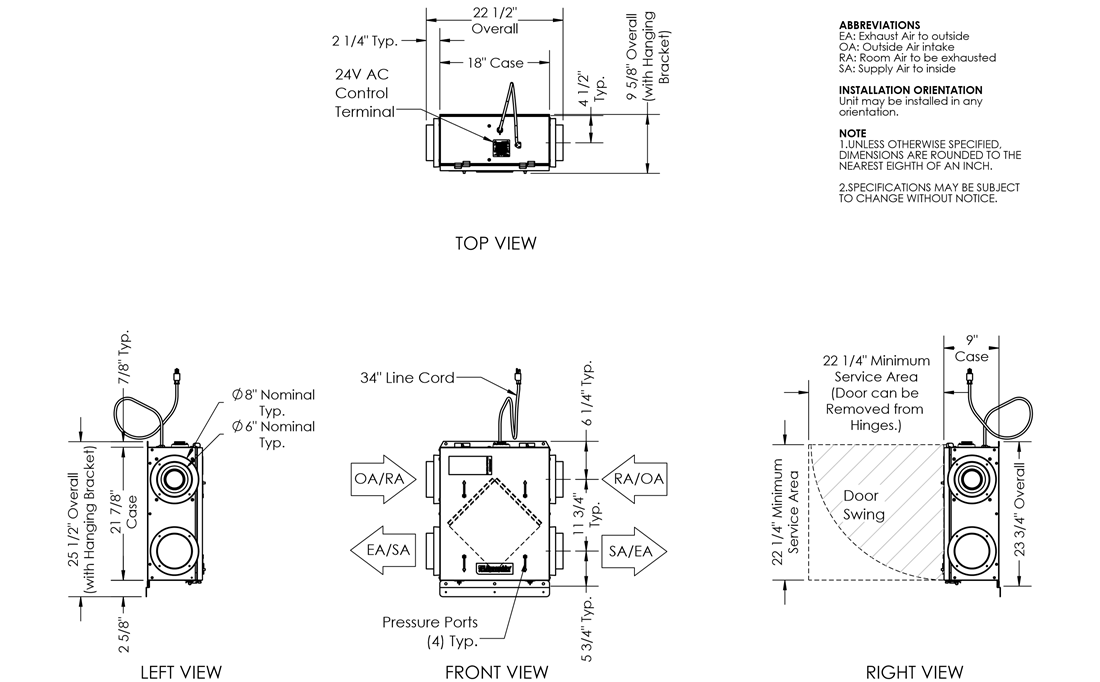

Dimensions for TReN90

Dimensional drawing for the TReN90 models.

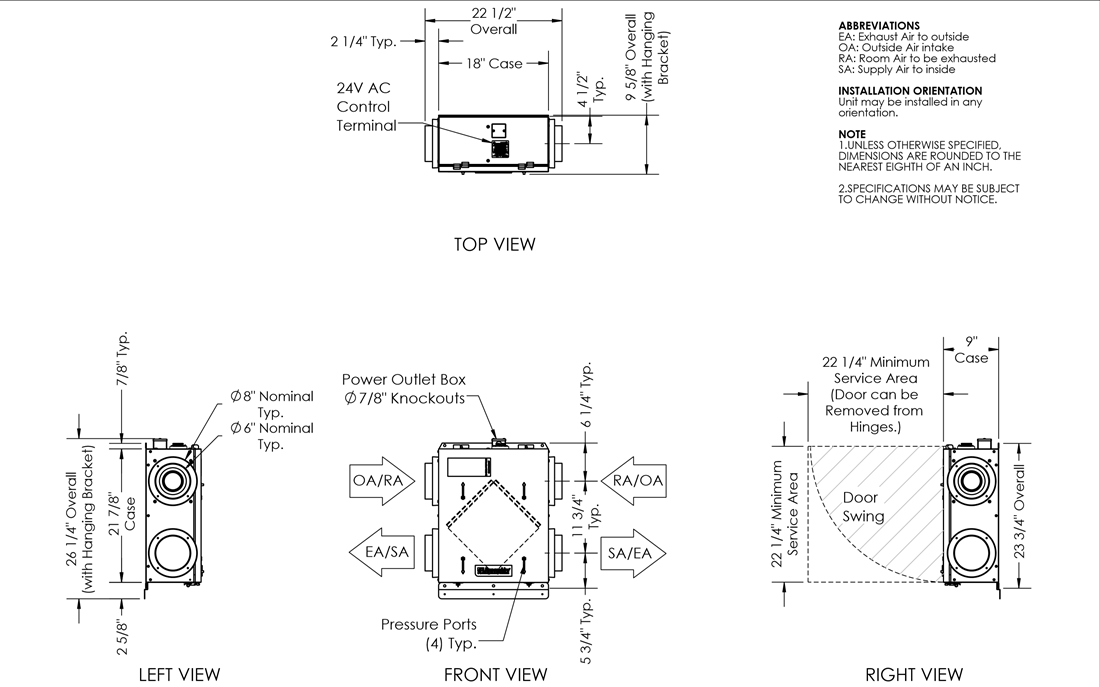

Dimensions for TReN90H

Dimensional drawing for the TReN90H models.

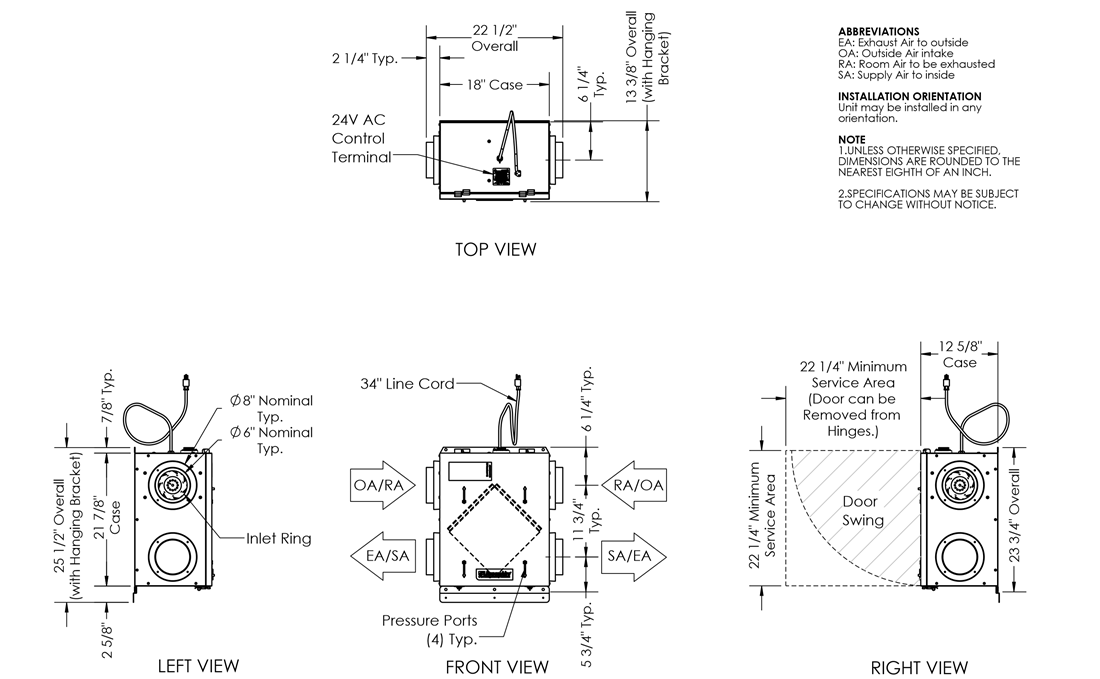

Dimensions for TReN200

Dimensional drawing for the TReN200 models.

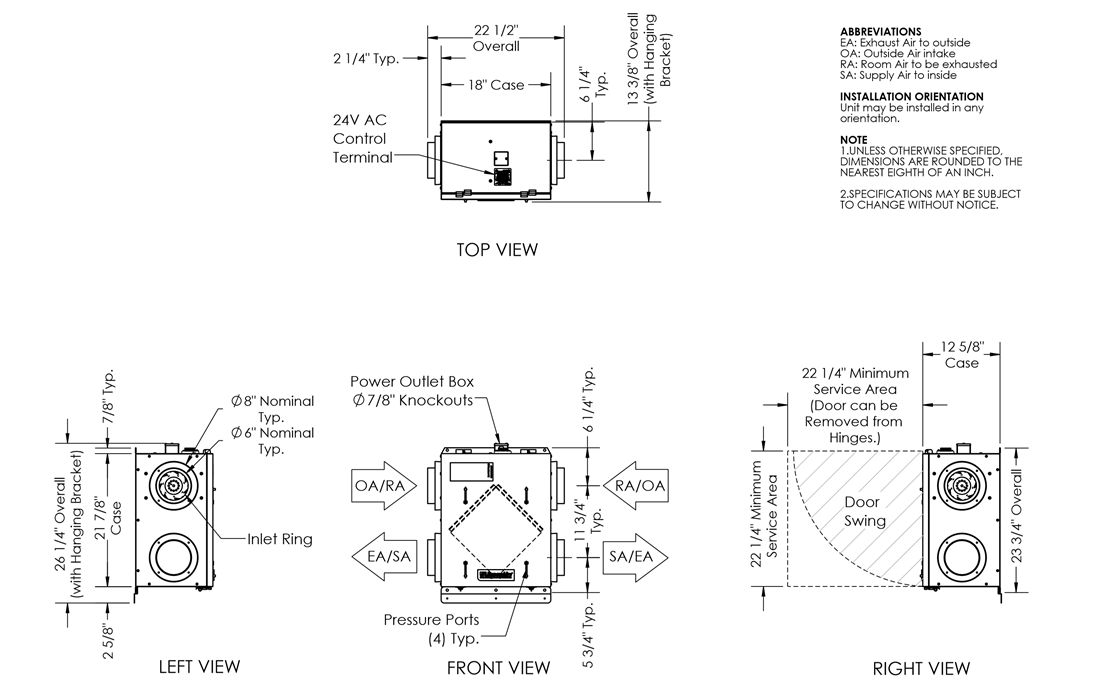

Dimensions for TReN200H

Dimensional drawing for the TReN200H models.

Additional accessories are available for certain products. Contact your S&P Representative for more information about these accessories.

General Accessories

CAR150 6" Steel Backdraft Damper Submittal
CAR200 8" Steel Backdraft Damper Submittal

Electrical Accessories

SPTL Percentage Timer Control (TRe200/TRe300) IOM
SPBL Push Button Point-of-Use Control (TRe200/TRe300) IOM
SFM Percentage Timer Control with Furnace Interlock IOM
SPBT Push Button Boost Timer Point-of-Use Control (TRe200/TRe300) IOM
SMC-C/SMC-W SMC Occupancy Sensor IOM
SCO2-W SCO2 Sensor IOM
STC7D Digital Time Clock IOM
ERVC+ Advanced S&P ERV Controller/ FID Manual Flyer
LVCT Low Voltage Countdown Timer IOM
LVPT Low Voltage Percentage Timer IOM
SPBACNETFC-W BACnet Fan Control Supplement IOM

Standard Accessories

990757 MERV 13 Filter ERV 3PK (TRe200)
990759 MERV 13 Filter ERV 3PK (TRe300)
990762 MERV 13 Filter ERV 10PK (TRe200)
990764 MERV 13 Filter ERV 10PK (TRe300)
990767 MERV 13 Filter ERV 25PK (TRe200)
990769 MERV 13 Filter ERV 25PK (TRe300)
990076 Universal Filters (10 Packs of Filter Media) (TRe200/TRe300) Submittal
990447 Universal Filters (3 Packs of Filter Media) (TRe200/TRe300) Submittal
FA8-G 8" Galvanized Metal Wall Cap (TRe200/TRe300)
FA8-P 8" Paintable Metal Wall Cap (TRe200/TRe300)
VW106 6" White Vinyl Wall Cap (TRe200/TRe300)
VW12X8 12x8-inch Louver to 8" Round Galvanized Metal Wall Cap (TRe200/TRe300)
VT8 8" Taupe Vinyl Wall Cap (TRe200/TRe300)
VB-106 6" Brown Vinyl Wall Cap (TRe200/TRe300)
BD6 6" Gravity Backdraft Damper (TRe200/TRe300)
BD8 8" Gravity Backdraft Damper (TRe200/TRe300)
